Details
-
Bug
-
Status: Closed (View Workflow)
-
Major
-
Resolution: Fixed
-
Jenkins 1.571, Delivery Pipeline Plugin 0.8.2, Build Pipeline Plugin 1.4.3
Description
The dynamic JS arrows between stages no longer show up in version 0.8.2 in either Firefox or Chrome. The problem appears in fullscreen view and non-fullscreen. The arrows are absent when not using custom CSS.
The arrows appear correctly in version 0.8.1 of the Delivery Pipeline Plugin.
Attachments
Activity
Trey Duskin

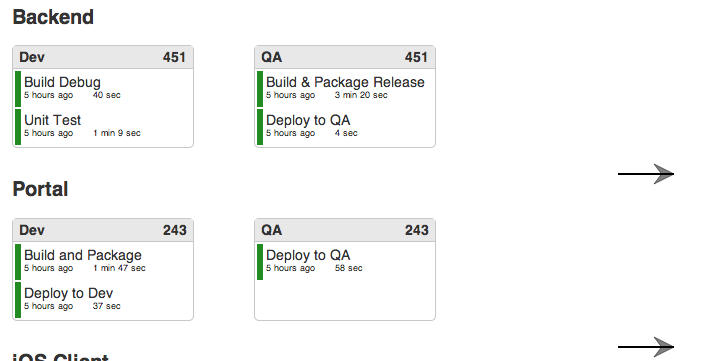

added a comment - I have this issue in 0.8.3 as well. It showed up after I upgraded my Jenkins install to 1.574 which uses the new responsive styling. In my case, the arrows are there but they are floating out in space. See attached screenshot.
Trey Duskin
added a comment - I have this issue in 0.8.3 as well. It showed up after I upgraded my Jenkins install to 1.574 which uses the new responsive styling. In my case, the arrows are there but they are floating out in space. See attached screenshot. Trey Duskin
added a comment - 0.8.3 floating arrows
Roy Miller
added a comment - Odd that you can't reproduce it, Patrik. I'll poke around some more and see if I see what Trey does with 1.574, or if I can dig up more info to share to make this easier to track down.
Roy Miller
added a comment - Odd that you can't reproduce it, Patrik. I'll poke around some more and see if I see what Trey does with 1.574, or if I can dig up more info to share to make this easier to track down. Managed to reproduce problem.
Have created a fix (https://github.com/Diabol/delivery-pipeline-plugin/pull/75)
Have attached a hpi with the fix.
If you have the possibility to test the fix I would be really happy!
Roy Miller
added a comment - Sorry for the late response, Patrik. I got sidetracked with other things this week. I see you already released the fix, so I installed it this morning and I can confirm that you did indeed fix the problem.
The stage connector arrows show up now, just like they used to. They don't show up in my modified stylesheet for some reason, so I'll have to change that, but they do show up in the default display.
Well done!
On a different note, I'd like to send you a private email. Should I use the email address linked to by your name in the comments here, or is there another address I should use? Feel free to email me privately at myfirstname dot mylastname at devellocus.com. Thanks.
Roy Miller
added a comment - Sorry for the late response, Patrik. I got sidetracked with other things this week. I see you already released the fix, so I installed it this morning and I can confirm that you did indeed fix the problem.
The stage connector arrows show up now, just like they used to. They don't show up in my modified stylesheet for some reason, so I'll have to change that, but they do show up in the default display.
Well done!
On a different note, I'd like to send you a private email. Should I use the email address linked to by your name in the comments here, or is there another address I should use? Feel free to email me privately at myfirstname dot mylastname at devellocus.com. Thanks.
Not able to reproduce it. But I made some changes in CSS with z-index for a couple of classes. Wonder if that could be the problem.
