windows agent via SSH - Slave JVM has terminated. Exit code

    XMLWordPrintable

Details

    Description

      The jar file on the slave fails to start.

      I use "Launch Slave Agents via SSH"

      [04/06/18 15:32:05] [SSH] Opening SSH connection to 192.168.120.187:22.

[04/06/18 15:32:06] [SSH] SSH host key matches key seen previously for this host. Connection will be allowed.

[04/06/18 15:32:06] [SSH] Authentication successful.

[04/06/18 15:32:06] [SSH] The remote user's environment is:

[04/06/18 15:32:06] [SSH] Checking java version of java

[04/06/18 15:32:06] [SSH] java -version returned 1.8.0_161.

[04/06/18 15:32:06] [SSH] Starting sftp client.

[04/06/18 15:32:06] [SSH] Copying latest slave.jar...

[04/06/18 15:32:06] [SSH] Copied 762,466 bytes.

Expanded the channel window size to 4MB

[04/06/18 15:32:06] [SSH] Starting slave process: cd "D:\CI\jenkins" && java  -jar slave.jar

<===[JENKINS REMOTING CAPACITY]===>Slave JVM has terminated. Exit code=0

[04/06/18 15:32:06] Launch failed - cleaning up connection

[04/06/18 15:32:06] [SSH] Connection closed.

      I use Manually trusted key Verification Strategy

      Require manual verification of initinial connection is OFF

      On windows, I use cygwin as bash, and openSSH from microsoft.

      Java version master:

      java version "1.8.0_144"
Java(TM) SE Runtime Environment (build 1.8.0_144-b01)
Java HotSpot(TM) 64-Bit Server VM (build 25.144-b01, mixed mode)

      Java version slave:

      java version "1.8.0_161"
Java(TM) SE Runtime Environment (build 1.8.0_161-b12)
Java HotSpot(TM) Client VM (build 25.161-b12, mixed mode, sharing)

      The jenkins version is: Jenkins ver. 2.107.2

      Attachments

        Issue Links

          is related to

          Bug - A problem which impairs or prevents the functions of the product. JENKINS-42856 Unable to launch Windows slaves using Microsoft OpenSSH: Unexpected termination of the channel

          • Minor - Minor loss of function, or other problem where easy workaround is present.
          • Fixed but Unreleased

          Activity

            Ascending order - Click to sort in descending order
            zack Zack Snyder added a comment -

            dnusbaum
            Any update here? I cannot use jenkins because of this.

            zack Zack Snyder added a comment - dnusbaum Any update here? I cannot use jenkins because of this.
            oleg_nenashev Oleg Nenashev added a comment -

            zack The output says that slave.jar successfully finished. In order to diagnose the issue, we need its logs.

            There are several ways to get these logs, see https://speakerdeck.com/onenashev/day-of-jenkins-2017-dealing-with-agent-connectivity-issues?slide=51

            oleg_nenashev Oleg Nenashev added a comment - zack The output says that slave.jar successfully finished. In order to diagnose the issue, we need its logs. There are several ways to get these logs, see https://speakerdeck.com/onenashev/day-of-jenkins-2017-dealing-with-agent-connectivity-issues?slide=51
            oleg_nenashev Oleg Nenashev added a comment -

            According to the available evidence, it seems to be something related to Remoting or SSH Slaves plugin

            oleg_nenashev Oleg Nenashev added a comment - According to the available evidence, it seems to be something related to Remoting or SSH Slaves plugin
            zack Zack Snyder added a comment -

            I tried adding as "Suffix Start Slave Command"
            following:

             -slaveLog "D:/CI/jenkins-ssh/log.txt"
 -slaveLog="D:/CI/jenkins-ssh/log.txt"
 -logFile "D:/CI/jenkins-ssh/log.txt"
 -logFile="D:/CI/jenkins-ssh/log.txt"
 > "D:/CI/jenkins-ssh/log.txt" 2>"D:/CI/jenkins-ssh/Errorlog.txt"

            However, not log was created.

            Remark the white space at the start.
            But the commands where used, I get following output from the agent:

            [04/12/18 12:03:02] [SSH] Starting slave process: cd "D:/CI/jenkins-ssh" && java  -jar slave.jar -slaveLog="D:/CI/jenkins-ssh/log.txt"

            In my sshd.log file from my ssh server on windows (where I want to run the slave) I get following output:

            5436 2018-04-12 11:43:08.739 WARNING: could not open __PROGRAMDATA__\\ssh/moduli (No such file or directory), using fixed modulus
5436 2018-04-12 11:43:08.989 Accepted password for BuildUser from 192.168.115.188 port 59704 ssh2
7648 2018-04-12 11:43:09.713 Received disconnect from 192.168.115.188 port 59704:11: Closed due to user request.
7648 2018-04-12 11:43:09.713 Disconnected from 192.168.115.188 port 59704

            192.168.115.188 => jenkins master

            zack Zack Snyder added a comment - I tried adding as "Suffix Start Slave Command" following: -slaveLog "D:/CI/jenkins-ssh/log.txt" -slaveLog="D:/CI/jenkins-ssh/log.txt" -logFile "D:/CI/jenkins-ssh/log.txt" -logFile="D:/CI/jenkins-ssh/log.txt" > "D:/CI/jenkins-ssh/log.txt" 2>"D:/CI/jenkins-ssh/Errorlog.txt" However, not log was created. Remark the white space at the start. But the commands where used, I get following output from the agent: [04/12/18 12:03:02] [SSH] Starting slave process: cd "D:/CI/jenkins-ssh" && java -jar slave.jar -slaveLog="D:/CI/jenkins-ssh/log.txt" In my sshd.log file from my ssh server on windows (where I want to run the slave) I get following output: 5436 2018-04-12 11:43:08.739 WARNING: could not open __PROGRAMDATA__\\ssh/moduli (No such file or directory), using fixed modulus 5436 2018-04-12 11:43:08.989 Accepted password for BuildUser from 192.168.115.188 port 59704 ssh2 7648 2018-04-12 11:43:09.713 Received disconnect from 192.168.115.188 port 59704:11: Closed due to user request. 7648 2018-04-12 11:43:09.713 Disconnected from 192.168.115.188 port 59704 192.168.115.188 => jenkins master
            oleg_nenashev Oleg Nenashev added a comment - - edited

            I am not sure that Java correctly processes the "D:/CI/jenkins-ssh/log.txt" format in Windows. Please try with correct backward slashes.

            Since the Machine is Windows. Not all SSH Servers are supported by the SSH slaves plugin AFAIK. I know that OpenSSH works in some cases, but I have never tested it on my own

            oleg_nenashev Oleg Nenashev added a comment - - edited I am not sure that Java correctly processes the "D:/CI/jenkins-ssh/log.txt" format in Windows. Please try with correct backward slashes. Since the Machine is Windows. Not all SSH Servers are supported by the SSH slaves plugin AFAIK. I know that OpenSSH works in some cases, but I have never tested it on my own
            oleg_nenashev Oleg Nenashev added a comment -

            It would be also nice to know Jenkins version, of course

            oleg_nenashev Oleg Nenashev added a comment - It would be also nice to know Jenkins version, of course
            zack Zack Snyder added a comment -

            I added the jenkins version in the description

            zack Zack Snyder added a comment - I added the jenkins version in the description
            zack Zack Snyder added a comment -

            oleg_nenashev
            Normally on bash based script, its only allowed to use forward slahses, however, I also tried with back slashes and with quotes and without.
            Nothing.

            zack Zack Snyder added a comment - oleg_nenashev Normally on bash based script, its only allowed to use forward slahses, however, I also tried with back slashes and with quotes and without. Nothing.
            oleg_nenashev Oleg Nenashev added a comment -

            Since it's confirmed that JNLP agents manage to connect, I assume this is an issue in SSH Slaves plugin. Reassigned it to the plugin's maintainer

            oleg_nenashev Oleg Nenashev added a comment - Since it's confirmed that JNLP agents manage to connect, I assume this is an issue in SSH Slaves plugin. Reassigned it to the plugin's maintainer
            ifernandezcalvo Ivan Fernandez Calvo added a comment -

            I saw that you have installed a JDK 32 bits on a 64 bits host, Could you install a 64 bit JDK in the agent?

            java version "1.8.0_161"
Java(TM) SE Runtime Environment (build 1.8.0_161-b12)
Java HotSpot(TM) Client VM (build 25.161-b12, mixed mode, sharing)
            ifernandezcalvo Ivan Fernandez Calvo added a comment - I saw that you have installed a JDK 32 bits on a 64 bits host, Could you install a 64 bit JDK in the agent? java version "1.8.0_161" Java(TM) SE Runtime Environment (build 1.8.0_161-b12) Java HotSpot(TM) Client VM (build 25.161-b12, mixed mode, sharing)
            zack Zack Snyder added a comment -

            I update the java version on the windows agent:

            C:\Users\BuildUser>java -version
java version "1.8.0_161"
Java(TM) SE Runtime Environment (build 1.8.0_161-b12)
Java HotSpot(TM) 64-Bit Server VM (build 25.161-b12, mixed mode)

            However, the error is still there.

            04/17/18 14:39:54] [SSH] Opening SSH connection to 192.168.120.187:22.
[04/17/18 14:39:54] [SSH] SSH host key matches key seen previously for this host. Connection will be allowed.
[04/17/18 14:39:54] [SSH] Authentication successful.
[04/17/18 14:39:54] [SSH] The remote user's environment is:
[04/17/18 14:39:54] [SSH] Checking java version of java
[04/17/18 14:39:54] [SSH] java -version returned 1.8.0_161.
[04/17/18 14:39:54] [SSH] Starting sftp client.
[04/17/18 14:39:54] [SSH] Copying latest slave.jar...
[04/17/18 14:39:55] [SSH] Copied 762,466 bytes.
Expanded the channel window size to 4MB
[04/17/18 14:39:55] [SSH] Starting slave process: cd "D:\CI\jenkins-ssh" && java  -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt
<===[JENKINS REMOTING CAPACITY]===>Slave JVM has terminated. Exit code=0
[04/17/18 14:39:55] Launch failed - cleaning up connection
[04/17/18 14:39:55] [SSH] Connection closed.
            zack Zack Snyder added a comment - I update the java version on the windows agent: C:\Users\BuildUser>java -version java version "1.8.0_161" Java(TM) SE Runtime Environment (build 1.8.0_161-b12) Java HotSpot(TM) 64-Bit Server VM (build 25.161-b12, mixed mode) However, the error is still there. 04/17/18 14:39:54] [SSH] Opening SSH connection to 192.168.120.187:22. [04/17/18 14:39:54] [SSH] SSH host key matches key seen previously for this host. Connection will be allowed. [04/17/18 14:39:54] [SSH] Authentication successful. [04/17/18 14:39:54] [SSH] The remote user's environment is: [04/17/18 14:39:54] [SSH] Checking java version of java [04/17/18 14:39:54] [SSH] java -version returned 1.8.0_161. [04/17/18 14:39:54] [SSH] Starting sftp client. [04/17/18 14:39:54] [SSH] Copying latest slave.jar... [04/17/18 14:39:55] [SSH] Copied 762,466 bytes. Expanded the channel window size to 4MB [04/17/18 14:39:55] [SSH] Starting slave process: cd "D:\CI\jenkins-ssh" && java -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt <===[JENKINS REMOTING CAPACITY]===>Slave JVM has terminated. Exit code=0 [04/17/18 14:39:55] Launch failed - cleaning up connection [04/17/18 14:39:55] [SSH] Connection closed.
            ifernandezcalvo Ivan Fernandez Calvo added a comment -

            Is there a support folder in D:\CI\jenkins-ssh?
            Are there log files in D:\CI\jenkins-ssh?
            Are there hs_err_* files in D:\CI\jenkins-ssh?
            Is java in the path of the user that you use when you enter with ssh?

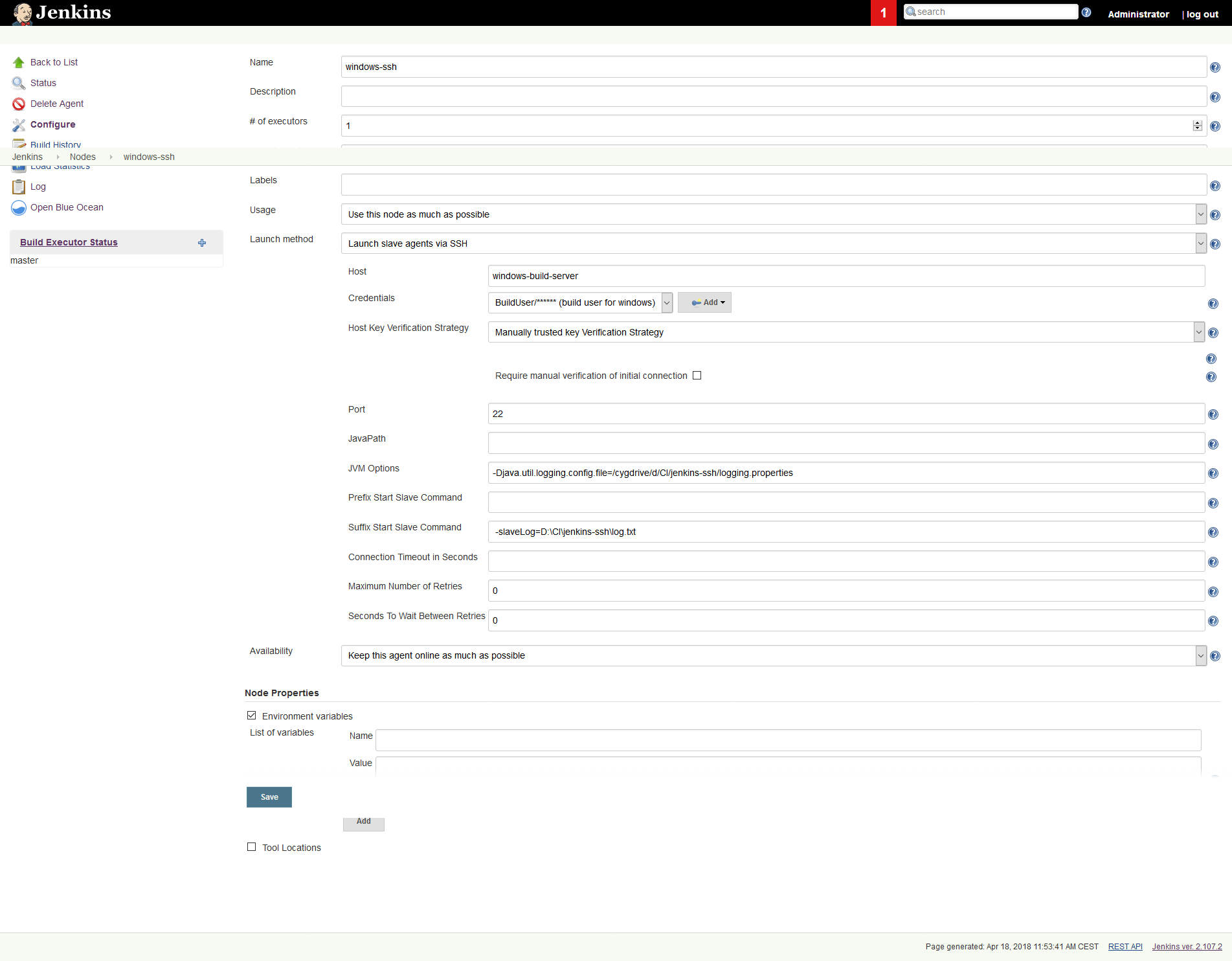

            Could you attach the config.xml of the agent? JENKINS_URL/computer/AGENT_NAME/config.xml
            How much memory this Agent has?
            Could you attach the D:/CI/jenkins-ssh/log.txt file?

            ifernandezcalvo Ivan Fernandez Calvo added a comment - Is there a support folder in D:\CI\jenkins-ssh? Are there log files in D:\CI\jenkins-ssh? Are there hs_err_* files in D:\CI\jenkins-ssh? Is java in the path of the user that you use when you enter with ssh? Could you attach the config.xml of the agent? JENKINS_URL/computer/AGENT_NAME/config.xml How much memory this Agent has? Could you attach the D:/CI/jenkins-ssh/log.txt file?
            ifernandezcalvo Ivan Fernandez Calvo added a comment -

            exetute this command to see the version of sshd you use

            sshd --foo
            ifernandezcalvo Ivan Fernandez Calvo added a comment - exetute this command to see the version of sshd you use sshd --foo
            zack Zack Snyder added a comment - - edited
            $ sshd --foo
sshd: unknown option -- -
OpenSSH_7.3p1, OpenSSL 1.0.2j  26 Sep 2016
usage: sshd [-46DdeiqTt] [-b bits] [-C connection_spec] [-c host_cert_file]
            [-E log_file] [-f config_file] [-g login_grace_time]
            [-h host_key_file] [-k key_gen_time] [-o option] [-p port]
            [-u len]

            There are no other files in the folder: D:\CI\jenkins-ssh, except the "slave.jar"
            When I try to download: http://jenkins/computer/windows-ssh/config.xml
            I get the attached XML (config.zip)

            zack Zack Snyder added a comment - - edited $ sshd --foo sshd: unknown option -- - OpenSSH_7.3p1, OpenSSL 1.0.2j 26 Sep 2016 usage: sshd [-46DdeiqTt] [-b bits] [-C connection_spec] [-c host_cert_file] [-E log_file] [-f config_file] [-g login_grace_time] [-h host_key_file] [-k key_gen_time] [-o option] [-p port] [-u len] There are no other files in the folder: D:\CI\jenkins-ssh, except the "slave.jar" When I try to download: http://jenkins/computer/windows-ssh/config.xml I get the attached XML (config.zip)
            zack Zack Snyder added a comment -

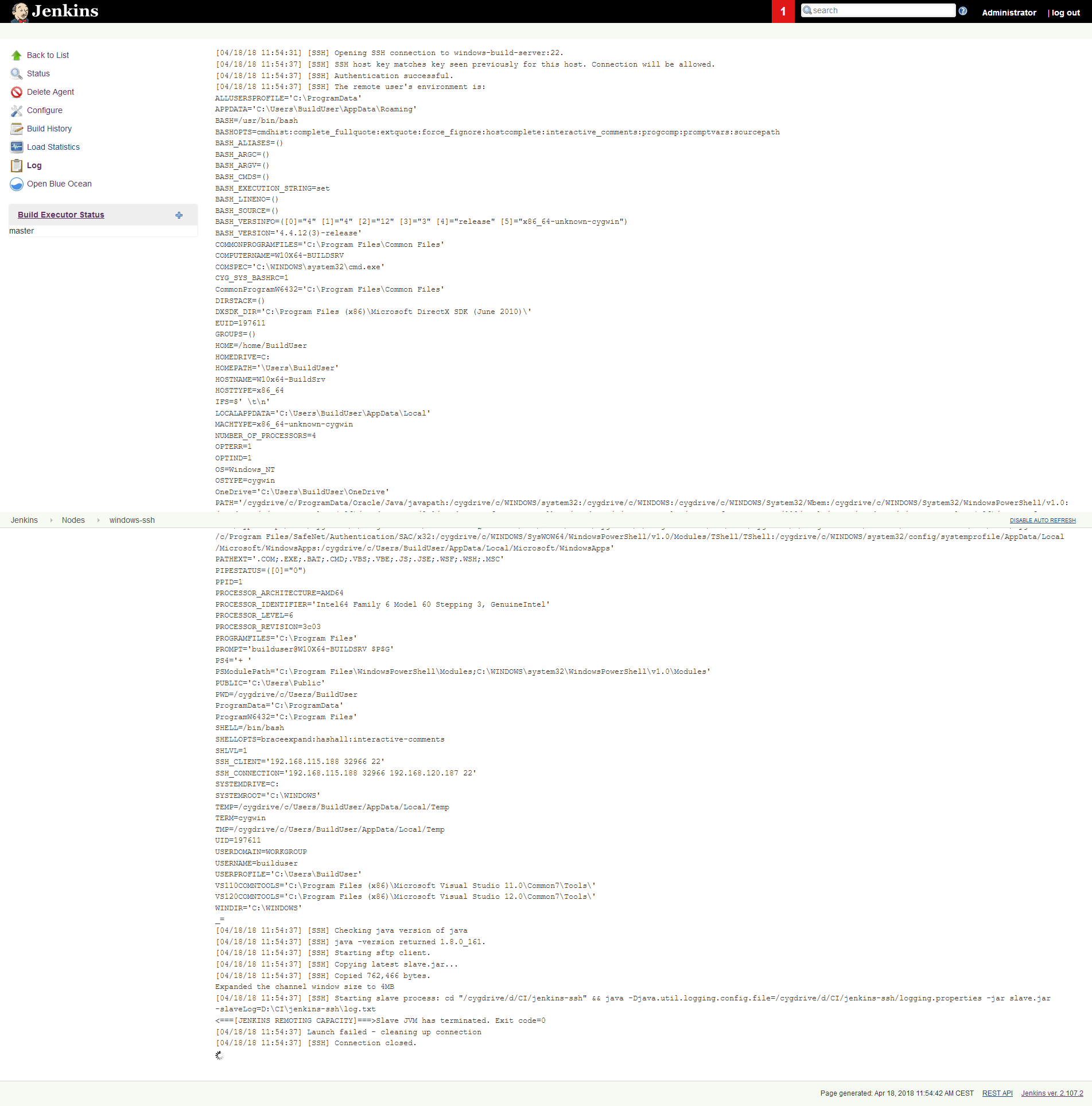

            When using cygwin as bash, I get also the environment variables printed:

            [04/17/18 17:58:59] [SSH] Opening SSH connection to windows-build-server:22.
[04/17/18 17:58:59] [SSH] SSH host key matches key seen previously for this host. Connection will be allowed.
[04/17/18 17:58:59] [SSH] Authentication successful.
[04/17/18 17:58:59] [SSH] The remote user's environment is:
ALLUSERSPROFILE='C:\ProgramData'
APPDATA='C:\Users\BuildUser\AppData\Roaming'
BASH=/usr/bin/bash
BASHOPTS=cmdhist:complete_fullquote:extquote:force_fignore:hostcomplete:interactive_comments:progcomp:promptvars:sourcepath
BASH_ALIASES=()
BASH_ARGC=()
BASH_ARGV=()
BASH_CMDS=()
BASH_EXECUTION_STRING=set
BASH_LINENO=()
BASH_SOURCE=()
BASH_VERSINFO=([0]="4" [1]="4" [2]="12" [3]="3" [4]="release" [5]="x86_64-unknown-cygwin")
BASH_VERSION='4.4.12(3)-release'
COMMONPROGRAMFILES='C:\Program Files\Common Files'
COMPUTERNAME=W10X64-BUILDSRV
COMSPEC='C:\WINDOWS\system32\cmd.exe'
CYG_SYS_BASHRC=1
CommonProgramW6432='C:\Program Files\Common Files'
DIRSTACK=()
DXSDK_DIR='C:\Program Files (x86)\Microsoft DirectX SDK (June 2010)\'
EUID=197611
GROUPS=()
HOME=/home/BuildUser
HOMEDRIVE=C:
HOMEPATH='\Users\BuildUser'
HOSTNAME=W10x64-BuildSrv
HOSTTYPE=x86_64
IFS=$' \t\n'
LOCALAPPDATA='C:\Users\BuildUser\AppData\Local'
MACHTYPE=x86_64-unknown-cygwin
NUMBER_OF_PROCESSORS=4
OPTERR=1
OPTIND=1
OS=Windows_NT
OSTYPE=cygwin
OneDrive='C:\Users\BuildUser\OneDrive'
PATH='/cygdrive/c/ProgramData/Oracle/Java/javapath:/cygdrive/c/WINDOWS/system32:/cygdrive/c/WINDOWS:/cygdrive/c/WINDOWS/System32/Wbem:/cygdrive/c/WINDOWS/System32/WindowsPowerShell/v1.0:/cygdrive/c/Program Files (x86)/Windows Kits/8.1/Windows Performance Toolkit:/cygdrive/c/Program Files/Microsoft SQL Server/110/Tools/Binn:/cygdrive/c/Program Files (x86)/Microsoft SDKs/TypeScript/1.0:/cygdrive/c/Program Files/Microsoft SQL Server/120/Tools/Binn:/cygdrive/c/Program Files/Git/cmd:/cygdrive/c/Program Files/SafeNet/Authentication/SAC/x64:/cygdrive/c/Program Files/SafeNet/Authentication/SAC/x32:/cygdrive/c/WINDOWS/SysWOW64/WindowsPowerShell/v1.0/Modules/TShell/TShell:/cygdrive/c/WINDOWS/system32/config/systemprofile/AppData/Local/Microsoft/WindowsApps:/cygdrive/c/Users/BuildUser/AppData/Local/Microsoft/WindowsApps'
PATHEXT='.COM;.EXE;.BAT;.CMD;.VBS;.VBE;.JS;.JSE;.WSF;.WSH;.MSC'
PIPESTATUS=([0]="0")
PPID=1
PROCESSOR_ARCHITECTURE=AMD64
PROCESSOR_IDENTIFIER='Intel64 Family 6 Model 60 Stepping 3, GenuineIntel'
PROCESSOR_LEVEL=6
PROCESSOR_REVISION=3c03
PROGRAMFILES='C:\Program Files'
PROMPT='builduser@W10X64-BUILDSRV $P$G'
PS4='+ '
PSModulePath='C:\Program Files\WindowsPowerShell\Modules;C:\WINDOWS\system32\WindowsPowerShell\v1.0\Modules'
PUBLIC='C:\Users\Public'
PWD=/cygdrive/c/Users/BuildUser
ProgramData='C:\ProgramData'
ProgramW6432='C:\Program Files'
SHELL=/bin/bash
SHELLOPTS=braceexpand:hashall:interactive-comments
SHLVL=1
SSH_CLIENT='192.168.115.188 59638 22'
SSH_CONNECTION='192.168.115.188 59638 192.168.120.187 22'
SYSTEMDRIVE=C:
SYSTEMROOT='C:\WINDOWS'
TEMP=/cygdrive/c/Users/BuildUser/AppData/Local/Temp
TERM=cygwin
TMP=/cygdrive/c/Users/BuildUser/AppData/Local/Temp
UID=197611
USERDOMAIN=WORKGROUP
USERNAME=builduser
USERPROFILE='C:\Users\BuildUser'
VS110COMNTOOLS='C:\Program Files (x86)\Microsoft Visual Studio 11.0\Common7\Tools\'
VS120COMNTOOLS='C:\Program Files (x86)\Microsoft Visual Studio 12.0\Common7\Tools\'
WINDIR='C:\WINDOWS'
_=
[04/17/18 17:59:00] [SSH] Checking java version of java
[04/17/18 17:59:00] [SSH] java -version returned 1.8.0_161.
[04/17/18 17:59:00] [SSH] Starting sftp client.
[04/17/18 17:59:00] [SSH] Copying latest slave.jar...
[04/17/18 17:59:00] [SSH] Copied 762,466 bytes.
Expanded the channel window size to 4MB
[04/17/18 17:59:00] [SSH] Starting slave process: cd "D:\CI\jenkins-ssh" && java  -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt
<===[JENKINS REMOTING CAPACITY]===>Slave JVM has terminated. Exit code=0
[04/17/18 17:59:00] Launch failed - cleaning up connection
[04/17/18 17:59:00] [SSH] Connection closed.
            zack Zack Snyder added a comment - When using cygwin as bash, I get also the environment variables printed: [04/17/18 17:58:59] [SSH] Opening SSH connection to windows-build-server:22. [04/17/18 17:58:59] [SSH] SSH host key matches key seen previously for this host. Connection will be allowed. [04/17/18 17:58:59] [SSH] Authentication successful. [04/17/18 17:58:59] [SSH] The remote user's environment is: ALLUSERSPROFILE='C:\ProgramData' APPDATA='C:\Users\BuildUser\AppData\Roaming' BASH=/usr/bin/bash BASHOPTS=cmdhist:complete_fullquote:extquote:force_fignore:hostcomplete:interactive_comments:progcomp:promptvars:sourcepath BASH_ALIASES=() BASH_ARGC=() BASH_ARGV=() BASH_CMDS=() BASH_EXECUTION_STRING=set BASH_LINENO=() BASH_SOURCE=() BASH_VERSINFO=([0]="4" [1]="4" [2]="12" [3]="3" [4]="release" [5]="x86_64-unknown-cygwin") BASH_VERSION='4.4.12(3)-release' COMMONPROGRAMFILES='C:\Program Files\Common Files' COMPUTERNAME=W10X64-BUILDSRV COMSPEC='C:\WINDOWS\system32\cmd.exe' CYG_SYS_BASHRC=1 CommonProgramW6432='C:\Program Files\Common Files' DIRSTACK=() DXSDK_DIR='C:\Program Files (x86)\Microsoft DirectX SDK (June 2010)\' EUID=197611 GROUPS=() HOME=/home/BuildUser HOMEDRIVE=C: HOMEPATH='\Users\BuildUser' HOSTNAME=W10x64-BuildSrv HOSTTYPE=x86_64 IFS=$' \t\n' LOCALAPPDATA='C:\Users\BuildUser\AppData\Local' MACHTYPE=x86_64-unknown-cygwin NUMBER_OF_PROCESSORS=4 OPTERR=1 OPTIND=1 OS=Windows_NT OSTYPE=cygwin OneDrive='C:\Users\BuildUser\OneDrive' PATH='/cygdrive/c/ProgramData/Oracle/Java/javapath:/cygdrive/c/WINDOWS/system32:/cygdrive/c/WINDOWS:/cygdrive/c/WINDOWS/System32/Wbem:/cygdrive/c/WINDOWS/System32/WindowsPowerShell/v1.0:/cygdrive/c/Program Files (x86)/Windows Kits/8.1/Windows Performance Toolkit:/cygdrive/c/Program Files/Microsoft SQL Server/110/Tools/Binn:/cygdrive/c/Program Files (x86)/Microsoft SDKs/TypeScript/1.0:/cygdrive/c/Program Files/Microsoft SQL Server/120/Tools/Binn:/cygdrive/c/Program Files/Git/cmd:/cygdrive/c/Program Files/SafeNet/Authentication/SAC/x64:/cygdrive/c/Program Files/SafeNet/Authentication/SAC/x32:/cygdrive/c/WINDOWS/SysWOW64/WindowsPowerShell/v1.0/Modules/TShell/TShell:/cygdrive/c/WINDOWS/system32/config/systemprofile/AppData/Local/Microsoft/WindowsApps:/cygdrive/c/Users/BuildUser/AppData/Local/Microsoft/WindowsApps' PATHEXT='.COM;.EXE;.BAT;.CMD;.VBS;.VBE;.JS;.JSE;.WSF;.WSH;.MSC' PIPESTATUS=([0]="0") PPID=1 PROCESSOR_ARCHITECTURE=AMD64 PROCESSOR_IDENTIFIER='Intel64 Family 6 Model 60 Stepping 3, GenuineIntel' PROCESSOR_LEVEL=6 PROCESSOR_REVISION=3c03 PROGRAMFILES='C:\Program Files' PROMPT='builduser@W10X64-BUILDSRV $P$G' PS4='+ ' PSModulePath='C:\Program Files\WindowsPowerShell\Modules;C:\WINDOWS\system32\WindowsPowerShell\v1.0\Modules' PUBLIC='C:\Users\Public' PWD=/cygdrive/c/Users/BuildUser ProgramData='C:\ProgramData' ProgramW6432='C:\Program Files' SHELL=/bin/bash SHELLOPTS=braceexpand:hashall:interactive-comments SHLVL=1 SSH_CLIENT='192.168.115.188 59638 22' SSH_CONNECTION='192.168.115.188 59638 192.168.120.187 22' SYSTEMDRIVE=C: SYSTEMROOT='C:\WINDOWS' TEMP=/cygdrive/c/Users/BuildUser/AppData/Local/Temp TERM=cygwin TMP=/cygdrive/c/Users/BuildUser/AppData/Local/Temp UID=197611 USERDOMAIN=WORKGROUP USERNAME=builduser USERPROFILE='C:\Users\BuildUser' VS110COMNTOOLS='C:\Program Files (x86)\Microsoft Visual Studio 11.0\Common7\Tools\' VS120COMNTOOLS='C:\Program Files (x86)\Microsoft Visual Studio 12.0\Common7\Tools\' WINDIR='C:\WINDOWS' _= [04/17/18 17:59:00] [SSH] Checking java version of java [04/17/18 17:59:00] [SSH] java -version returned 1.8.0_161. [04/17/18 17:59:00] [SSH] Starting sftp client. [04/17/18 17:59:00] [SSH] Copying latest slave.jar... [04/17/18 17:59:00] [SSH] Copied 762,466 bytes. Expanded the channel window size to 4MB [04/17/18 17:59:00] [SSH] Starting slave process: cd "D:\CI\jenkins-ssh" && java -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt <===[JENKINS REMOTING CAPACITY]===>Slave JVM has terminated. Exit code=0 [04/17/18 17:59:00] Launch failed - cleaning up connection [04/17/18 17:59:00] [SSH] Connection closed.
            ifernandezcalvo Ivan Fernandez Calvo added a comment -

            Create a file named D:\CI\jenkins-ssh\logging.properties and add this property to the JVM options *-Djava.util.logging.config.file=/cygdrive/d/CI/jenkins-ssh/logging.properties* also set the *root fs* to /cygdrive/d/CI/jenkins-ssh/ in the Agent configuration

            # -Djava.util.logging.config.file=logging.properties
.level = ALL
handlers= java.util.logging.FileHandler

java.util.logging.FileHandler.level = ALL
java.util.logging.FileHandler.formatter = java.util.logging.SimpleFormatter
java.util.logging.FileHandler.pattern=jenkins-ssh-agent-%u.log
java.util.logging.FileHandler.limit = 10000000
java.util.logging.FileHandler.count = 10

javax.jms.connection.level = INFO
hudson.level = INFO
hudson.remoting.Channel.level = FINE
hudson.remoting.FileSystemJarCache.level = INFO
hudson.remoting.jnlp.level = FINE
hudson.remoting.RemoteClassLoader.level = INFO
jenkins.slaves.level = FINE
hudson.slaves.level = FINE
org.jenkinsci.remoting.engine.level = FINE
jenkins.AgentProtocol.level = FINE

            The config file attached is not completed, it is a copy and paste of an parse error in your browser, please download the file and attach it.

            ifernandezcalvo Ivan Fernandez Calvo added a comment - Create a file named D:\CI\jenkins-ssh\logging.properties and add this property to the JVM options * -Djava.util.logging.config.file=/cygdrive/d/CI/jenkins-ssh/logging.properties * also set the * root fs * to /cygdrive/d/CI/jenkins-ssh/ in the Agent configuration # -Djava.util.logging.config.file=logging.properties .level = ALL handlers= java.util.logging.FileHandler java.util.logging.FileHandler.level = ALL java.util.logging.FileHandler.formatter = java.util.logging.SimpleFormatter java.util.logging.FileHandler.pattern=jenkins-ssh-agent-%u.log java.util.logging.FileHandler.limit = 10000000 java.util.logging.FileHandler.count = 10 javax.jms.connection.level = INFO hudson.level = INFO hudson.remoting.Channel.level = FINE hudson.remoting.FileSystemJarCache.level = INFO hudson.remoting.jnlp.level = FINE hudson.remoting.RemoteClassLoader.level = INFO jenkins.slaves.level = FINE hudson.slaves.level = FINE org.jenkinsci.remoting.engine.level = FINE jenkins.AgentProtocol.level = FINE The config file attached is not completed, it is a copy and paste of an parse error in your browser, please download the file and attach it.
            ifernandezcalvo Ivan Fernandez Calvo added a comment -

            if it does not generate any files on D:\CI\jenkins-ssh try to execute the slave.jar process manually to see if we see something else, follow these steps

            • enter on the Agent by SSH with the same user you use in Jenkins
            • execure "D:\CI\jenkins-ssh" && java -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt"
            • Copy the output and paste it here
            ifernandezcalvo Ivan Fernandez Calvo added a comment - if it does not generate any files on D:\CI\jenkins-ssh try to execute the slave.jar process manually to see if we see something else, follow these steps enter on the Agent by SSH with the same user you use in Jenkins execure "D:\CI\jenkins-ssh" && java -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt" Copy the output and paste it here
            zack Zack Snyder added a comment - - edited

            No files were created.

            zack Zack Snyder added a comment - - edited No files were created.
            zack Zack Snyder added a comment - - edited

            Here is my output of the console (logged in from the master agent, where jenkins is running):

            BuildUser@W10x64-BuildSrv /cygdrive/c/Users/BuildUser
$ D:
bash: D:: command not found

BuildUser@W10x64-BuildSrv /cygdrive/c/Users/BuildUser
$ cd d:

BuildUser@W10x64-BuildSrv /cygdrive/d
$ cd CI/jenkins-ssh/

BuildUser@W10x64-BuildSrv /cygdrive/d/CI/jenkins-ssh
$ d:
bash: d:: command not found

BuildUser@W10x64-BuildSrv /cygdrive/d/CI/jenkins-ssh
$ cd ..

BuildUser@W10x64-BuildSrv /cygdrive/d/CI
$ cd ..

BuildUser@W10x64-BuildSrv /cygdrive/d
$ cd C:

BuildUser@W10x64-BuildSrv /cygdrive/c
$ cls
bash: cls: command not found

BuildUser@W10x64-BuildSrv /cygdrive/c
$ clear
bash: clear: command not found

BuildUser@W10x64-BuildSrv /cygdrive/c
$ cls
bash: cls: command not found

BuildUser@W10x64-BuildSrv /cygdrive/c
$ "D:\CI\jenkins-ssh" && java -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt"
> pwd
> ls
>

BuildUser@W10x64-BuildSrv /cygdrive/c
$ d:
bash: d:: command not found

BuildUser@W10x64-BuildSrv /cygdrive/c
$ cd D:

BuildUser@W10x64-BuildSrv /cygdrive/d
$ cd CI/jenkins

BuildUser@W10x64-BuildSrv /cygdrive/d/CI/jenkins
$ java -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt"
>

BuildUser@W10x64-BuildSrv /cygdrive/d/CI/jenkins
$ java -jar slave.jar
WARNING: Are you running agent from an interactive console?
If so, you are probably using it incorrectly.
See https://wiki.jenkins.io/display/JENKINS/Launching+agent+from+console
<===[JENKINS REMOTING CAPACITY]===>rO0ABXNyABpodWRzb24ucmVtb3RpbmcuQ2FwYWJpbGl0eQAAAAAAAAABAgABSgAEbWFza3hwAAAAAAAAAP4=

            Only when I execute java.jar directly, (like you can see on the last cmd) I could start the agent, otherwise it was not returning from execution.
            See attached now the correct config.xml

            zack Zack Snyder added a comment - - edited Here is my output of the console (logged in from the master agent, where jenkins is running): BuildUser@W10x64-BuildSrv /cygdrive/c/Users/BuildUser $ D: bash: D:: command not found BuildUser@W10x64-BuildSrv /cygdrive/c/Users/BuildUser $ cd d: BuildUser@W10x64-BuildSrv /cygdrive/d $ cd CI/jenkins-ssh/ BuildUser@W10x64-BuildSrv /cygdrive/d/CI/jenkins-ssh $ d: bash: d:: command not found BuildUser@W10x64-BuildSrv /cygdrive/d/CI/jenkins-ssh $ cd .. BuildUser@W10x64-BuildSrv /cygdrive/d/CI $ cd .. BuildUser@W10x64-BuildSrv /cygdrive/d $ cd C: BuildUser@W10x64-BuildSrv /cygdrive/c $ cls bash: cls: command not found BuildUser@W10x64-BuildSrv /cygdrive/c $ clear bash: clear: command not found BuildUser@W10x64-BuildSrv /cygdrive/c $ cls bash: cls: command not found BuildUser@W10x64-BuildSrv /cygdrive/c $ "D:\CI\jenkins-ssh" && java -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt" > pwd > ls > BuildUser@W10x64-BuildSrv /cygdrive/c $ d: bash: d:: command not found BuildUser@W10x64-BuildSrv /cygdrive/c $ cd D: BuildUser@W10x64-BuildSrv /cygdrive/d $ cd CI/jenkins BuildUser@W10x64-BuildSrv /cygdrive/d/CI/jenkins $ java -jar slave.jar -slaveLog=D:\CI\jenkins-ssh\log.txt" > BuildUser@W10x64-BuildSrv /cygdrive/d/CI/jenkins $ java -jar slave.jar WARNING: Are you running agent from an interactive console? If so, you are probably using it incorrectly. See https://wiki.jenkins.io/display/JENKINS/Launching+agent+from+console <===[JENKINS REMOTING CAPACITY]===>rO0ABXNyABpodWRzb24ucmVtb3RpbmcuQ2FwYWJpbGl0eQAAAAAAAAABAgABSgAEbWFza3hwAAAAAAAAAP4= Only when I execute java.jar directly, (like you can see on the last cmd) I could start the agent, otherwise it was not returning from execution. See attached now the correct config.xml
            ifernandezcalvo Ivan Fernandez Calvo added a comment -

            >Only when I execute java.jar directly, (like you can see on the last cmd) I could start the agent, otherwise it was not returning from execution.

            That it is ok, it should not return, I wanted to check that you can execute the java -jar slave.jar and it does not return errors.

            ifernandezcalvo Ivan Fernandez Calvo added a comment - >Only when I execute java.jar directly, (like you can see on the last cmd) I could start the agent, otherwise it was not returning from execution. That it is ok, it should not return, I wanted to check that you can execute the java -jar slave.jar and it does not return errors.
            ifernandezcalvo Ivan Fernandez Calvo added a comment -

            The config.xml attached is a multibranch project, it is not the config.xml of the Agent, anyway add this command as suffix start label command

             || echo "KO - retcode $?"

            Then do a try an attach the output.

            Finally, replace the previous command by this one and attach the output

             && echo "OK - retcode $?"

            I want to get the real exit code of the java process

            ifernandezcalvo Ivan Fernandez Calvo added a comment - The config.xml attached is a multibranch project, it is not the config.xml of the Agent, anyway add this command as suffix start label command || echo "KO - retcode $?" Then do a try an attach the output. Finally, replace the previous command by this one and attach the output && echo "OK - retcode $?" I want to get the real exit code of the java process
            ifernandezcalvo Ivan Fernandez Calvo added a comment -

            How much memory has this agent? Do it has an antivirus installed?

            ifernandezcalvo Ivan Fernandez Calvo added a comment - How much memory has this agent? Do it has an antivirus installed?
            zack Zack Snyder added a comment -

            You mean like this?

            [04/18/18 18:15:35] [SSH] Starting slave process: cd "/cygdrive/d/CI/jenkins-ssh" && java -Djava.util.logging.config.file=/cygdrive/d/CI/jenkins-ssh/logging.properties -jar slave.jar && echo "OK - retcode $?"
<===[JENKINS REMOTING CAPACITY]===>Slave JVM has terminated. Exit code=0
[04/18/18 18:15:35] Launch failed - cleaning up connection
[04/18/18 18:15:35] [SSH] Connection closed.

            I executed the previous command before, nothing.

            The agent has 16 GB of RAM
            I can also successfully build on the machine, when I use the connection of "Launch agent via web start".

            zack Zack Snyder added a comment - You mean like this? [04/18/18 18:15:35] [SSH] Starting slave process: cd "/cygdrive/d/CI/jenkins-ssh" && java -Djava.util.logging.config.file=/cygdrive/d/CI/jenkins-ssh/logging.properties -jar slave.jar && echo "OK - retcode $?" <===[JENKINS REMOTING CAPACITY]===>Slave JVM has terminated. Exit code=0 [04/18/18 18:15:35] Launch failed - cleaning up connection [04/18/18 18:15:35] [SSH] Connection closed. I executed the previous command before, nothing. The agent has 16 GB of RAM I can also successfully build on the machine, when I use the connection of "Launch agent via web start".
            zack Zack Snyder added a comment -

            Do you not find it strange, that I could execute the slave.jar file only when I was in the folder?

            zack Zack Snyder added a comment - Do you not find it strange, that I could execute the slave.jar file only when I was in the folder?
            ifernandezcalvo Ivan Fernandez Calvo added a comment -

            Could you try the other one? because seems like the slave.jar process die

            || echo "KO - retcode $?"
            ifernandezcalvo Ivan Fernandez Calvo added a comment - Could you try the other one? because seems like the slave.jar process die || echo "KO - retcode $?"
            ifernandezcalvo Ivan Fernandez Calvo added a comment - - edited

            I think that I know what happens, clean up the suffix and prefix field and put exactly this one in the prefix field

            /bin/bash -c "cd "/cygdrive/d/CI/jenkins-ssh" && java -Djava.util.logging.config.file=/cygdrive/d/CI/jenkins-ssh/logging.properties -jar slave.jar";
            ifernandezcalvo Ivan Fernandez Calvo added a comment - - edited I think that I know what happens, clean up the suffix and prefix field and put exactly this one in the prefix field /bin/bash -c "cd " /cygdrive/d/CI/jenkins-ssh " && java -Djava.util.logging.config.file=/cygdrive/d/CI/jenkins-ssh/logging.properties -jar slave.jar" ;
            zack Zack Snyder added a comment -

            Here is the output:
            prefix_output.txt

            I just inserted text into the prefix field.

            zack Zack Snyder added a comment - Here is the output: prefix_output.txt I just inserted text into the prefix field.
            zack Zack Snyder added a comment -

            ifernandezcalvo
            Any update? Or are you now at the end of you knowledge? A tricky problem.

            zack Zack Snyder added a comment - ifernandezcalvo Any update? Or are you now at the end of you knowledge? A tricky problem.
            ifernandezcalvo Ivan Fernandez Calvo added a comment -
             /bin/bash -c "cd "/cygdrive/d/CI/jenkins-ssh" && java -Djava.util.logging.config.file=/cygdrive/d/CI/jenkins-ssh/logging.properties -jar slave.jar"

            The command line is not correct but does not matter because "/bin/bash -c" does not return any error, it should return at least a syntax error, I do not know what happen on your environment but it is not related with the SSH Slave Plugins it is something in your sshd configuration, on your user login, on your environment initialization files (.bashrc, .profile, ...), or your default shell, I bet that if you put

            /bin/bash -c ls &&

            on your command prefix you would see nothing in the console output.
            You could try to execute a command using the ssh command line, probably it fails

            ssh USERNAME@AGENT_HOST /bin/bash -c ls

            try the same but with -t parameter, it should work

            ssh -t USERNAME@AGENT_HOST /bin/bash -c ls

            I recommend you to check a really good comment from Ben Langton at https://wiki.jenkins.io/display/JENKINS/SSH+slaves+and+Cygwin that explains all the steps that you have to make to configure OpenSSH.

            If you need more help, try in the jenkins user group.

            ifernandezcalvo Ivan Fernandez Calvo added a comment - /bin/bash -c "cd " /cygdrive/d/CI/jenkins-ssh " && java -Djava.util.logging.config.file=/cygdrive/d/CI/jenkins-ssh/logging.properties -jar slave.jar" The command line is not correct but does not matter because "/bin/bash -c" does not return any error, it should return at least a syntax error, I do not know what happen on your environment but it is not related with the SSH Slave Plugins it is something in your sshd configuration, on your user login, on your environment initialization files (.bashrc, .profile, ...), or your default shell, I bet that if you put /bin/bash -c ls && on your command prefix you would see nothing in the console output. You could try to execute a command using the ssh command line, probably it fails ssh USERNAME@AGENT_HOST /bin/bash -c ls try the same but with -t parameter, it should work ssh -t USERNAME@AGENT_HOST /bin/bash -c ls I recommend you to check a really good comment from Ben Langton at https://wiki.jenkins.io/display/JENKINS/SSH+slaves+and+Cygwin that explains all the steps that you have to make to configure OpenSSH. If you need more help, try in the jenkins user group .

            People

              ifernandezcalvo Ivan Fernandez Calvo
              zack Zack Snyder
              Votes:
              0 Vote for this issue
              Watchers:
              4 Start watching this issue

              Dates

                Created:
                Updated:
                Resolved:
