Sam Van Oort added a comment - 2016-09-26 13:26 - edited In answer to your questions: > Is "aborted" a failed state? should it be red? It's a special case of failure (like paused or waiting for input is a special case of "in progress") - an ErrorAction and also build result is attached to the step and its enclosing blocks. > What is a more appropriate icon? In classic Jenkins this merits a gray rather than red ball color. Personally, I'm all for it if you guys throw that out and do some sort of failure icon with additional decoration to show abort. > a bunch of questions about specific cases Yes, steps can be aborted, and yes they should carry the same indicator. Their enclosing block will too. I'd point you guys at the classic Jenkins Result object: http://javadoc.jenkins-ci.org/hudson/model/Result.html And the Bismuth (pipeline graph analysis) component here - https://github.com/jenkinsci/pipeline-graph-analysis-plugin/blob/master/src/main/java/org/jenkinsci/plugins/workflow/pipelinegraphanalysis/GenericStatus.java

Michael Neale added a comment - 2016-09-27 06:23 Thanks Sam. I like Abort being disctinct from failure, quite clearly (ie grey isn't terribly) IMO

James Dumay added a comment - 2016-09-27 08:28 svanoort nice - thanks for the context! michaelneale will need to get vivek to consider this when he implements the bismuth api

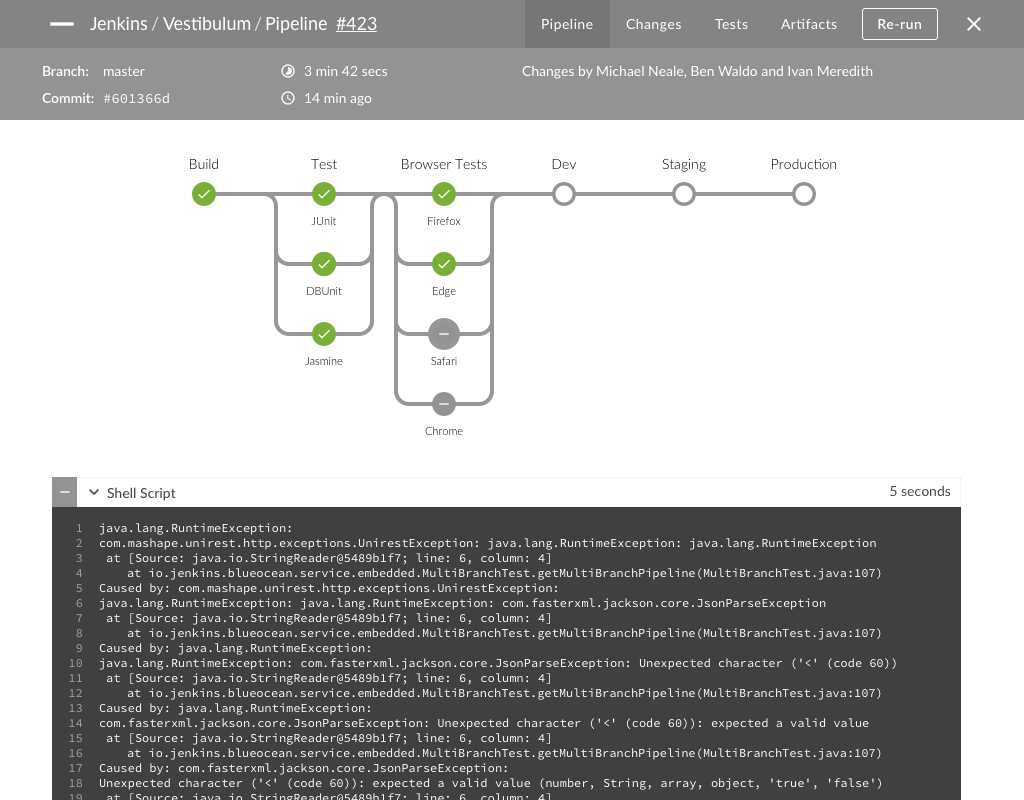

Brody Maclean added a comment - 2016-10-11 03:49 - edited Zeplin link https://zpl.io/H3odi Icon = Remove – https://design.google.com/icons/#ic_remove Mockup

James Dumay added a comment - 2017-01-22 22:02 Might want to ask Josh how best to fit this in as headers v2 are landing soon
